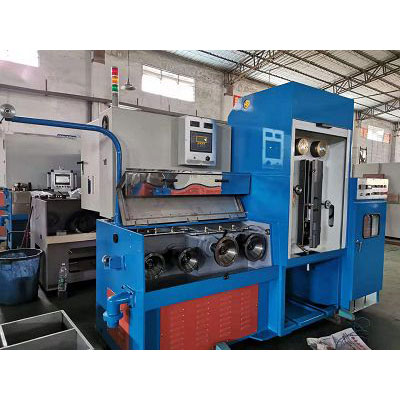

Wire drawing machine with annealing
| wire drawing machine with annealing | |||
| Model | 17DHT | SMD205T | 24DHT |
| control system | digital readout button | ||
| power control | dual inverter | ||
| wire inlet diameter | 0.75-1.6mm | 0.95-1.65mm | 0.5-1.2mm |
| wire finished diameter | 0.2-0.5mm | 0.15-0.4mm | 0.1-0.32mm |
| max wire speed | 2000m/min | 2000m/min | 2000m/min |
| max dies NO. | 17(18) | 24 | 24 |
| mechanical elongation | 15%+8.7% | 15%+13% | 13%+8.7% |
| construction of the machine body | casting+steel plate welded and annealed | ||
| drawing capstan | ceramic coated | ||
| capstan diameter | 242mm | 242mm | 242mm |
| fix speed capstan diameter | 206mm | ||
| drawing/take up motor | AC55kw/AC11kw | ||
| spool bobbin size | 300*215*270mm | ||
| transmission type | import advanced flat belt drive | ||
| bobbin loading unloading type | expansion shaft or single shaft cone | ||
| main motor | 15kw | 15kw | 11kw |
| spooler motor | 4kw | ||
| tension adjustment | weight type tension pulley | ||
| fix system | automatic control of take up by PID | ||
| max loading capacity | 50kg | ||
| lubrication capacity | 50L/min | ||
| lubrication type | spraying | ||
| brake | magnetic brake | ||
| lubrication type for bearing | without oil | ||
| annealing control | 3 poles DC current output | ||
| annealing capacity | 30 KVA | 21 or 30 KVA | 21KVA |
| annealing voltage | 0-57V | ||
| annealing current | 400A | 400A | 300A |
| total power | 19kw+30KVA | 19kw+30KVA | 15kw+30KVA |
| power source | 380V,50/60HZ | ||
| Steam consumption | 6-9kg/h 0.2-0.3MPa | ||
| coiling water consumption | 4-8m³/h 0.2-0.25MPa | ||
| air consumption | 15-25m³/h 0.4-0.6Mpa | ||
| dimensions | 3*2.5*2.3M | ||
| weight | 3000kg | ||
