Single & Double Layers Taping Machine

SKU: HZ-ZY-630 Category:

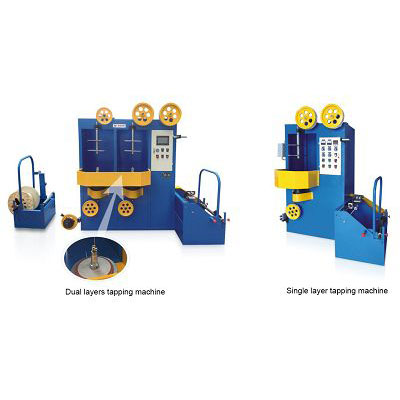

Single & Double Layers Taping Machine






Specifications

Machine model ZY-630 single(dual) layer

vertical taping machine

ZY-800 single(dual) layer

vertical taping machine

Core specification 0.6mm-15.0mm
Tapping material Aluminum foil tape,ALPET,cotton paper tape,

transparent tape,mica tape,Teflon tape

Max .rpm Max 2500rpm
Tapping head Concentric type Wrapping
Tapping tension Automatic tension control
Tape spool diameter OD:Φ250-300mm,inside hole:Φ50mm
Pay-off bobbin Customers
Take-up bobbin diameter Φ630mm Φ800mm
The leading wheel diameter Φ400mm
Motor power 3phase 2HP inverter
The leading motor 1.5kw gear motor
Take-up unit type variable frequency take-up
