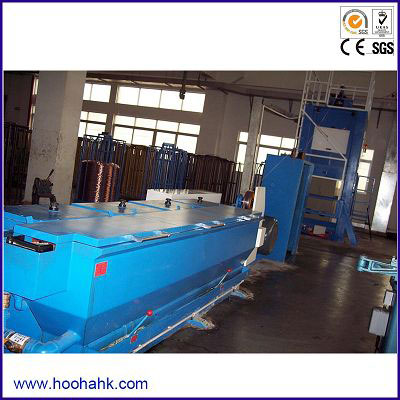

RBD Production Line
| Technical parameter | |||||
| Name | DL400-7 | DL400-9 | DL400A-9 | DL400-11 | DL400-13 |
| wire inlet diameter | 8mm copper bar | ||||
| wire finished diameter | 2.6-3.5mm | 2.0-3.5mm | 2.0-3.5mm | 1.6-3.5mm | 1.2-3.5mm |
| MAX speed | 1000m/min | 1200m/min | 1500m/min | 1500m/min | 1500m/min |
| die outer dia | MAX 55mm | ||||
| elongation | 42%-21% | 42%-21% | 46%-8% | 46%-8% | 46%-8% |
| capstan dia | 400mm | 400mm | 1st-5th 500mm,the rest of 400mm | ||
| fix speed capstan dia | 400mm | ||||
| main motor power | AC132KW | AC160KW | AC160KW | AC200KW | AC220KW |
| fix speed motor power | AC55KW | ||||
| rotating die motor power | AC400W | ||||
| pump motor power | 1.1KW | 4KW | |||
| overall dimensions | 4.36*2.7*1.2m | 5.36*2.7*1.2m | 6.8*1.8*1.2m | 7.9*1.8*1.2m | 9*1.8*1.2m |
| net weight | 7000kg | 8500kg | 13000kg | 15000kg | 17000kg |
| Wire size and production speed | |||||
| wire size | TY hard wire production speed | ||||
| DL400-7 | DL400-9 | DL400A-9 | DL400-11 | DL400-13 | |
| 1.2mm | 1200 | ||||
| 1.6mm | 1200 | 1200 | |||
| 2.0mm | 1000 | 1000 | 1000 | 1000 | |
| 2.6mm | 900 | 900 | 900 | 900 | 900 |
| 3.0mm | 700 | 700 | 700 | 700 | 700 |
| 3.5mm | 600 | 600 | 600 | 600 | 600 |
