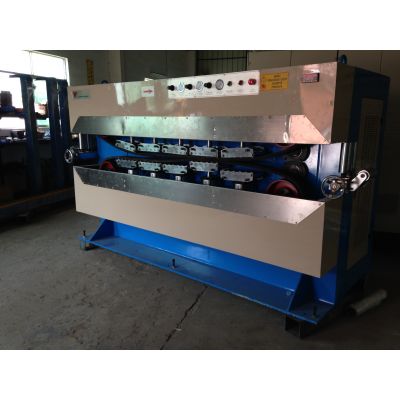

QYD Ressure crawler tractor

Application of the equipment：

The machine as a common auxiliaries cable special equipment widely used in the cable

manufacturing process during the extrusion, into a rope or package with a step of

traction. It has traction speed, low noise, and wide range of speed cable abrasions small

and simple operation and small size.

The main technical parameters： Device Center high 1000mm

No	Parameter name	Unit	QYD100	QYD125	QYD200	QYD300
1	Effective Clamping length	mm	670	950	1510	2070
2	Maximum traction	kg	1000	1250	2000	3000
3	Compressing the number of cylinders	piece	3X2	4X2	6X2	8X2
4	Traction speed	m/min	9.7~154.2	7.8~123.7	7.5~119.6	5.9~95.5
5	Maximum cable diameter	min	30	50	80	100
