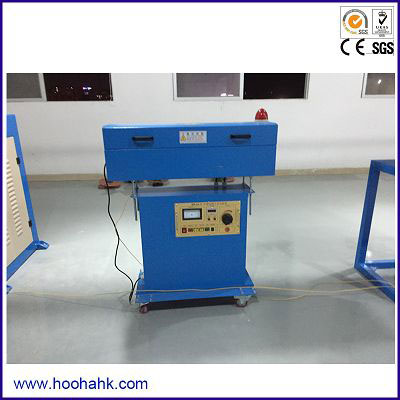

Pointer Type Spark Testing Machine
Product Name: Pointer Type Spark Testing Machine
Produce model: HH-4003
Design criteria: GB/3048.9-94, JB472810, BS5099, UL1581-1990
Product Description
Pointer Type Spark Testing Machine is a necessary test equipment for wire and cable manufacturing process and using high voltage to test the insulation quality.
The EDM sensitivity <600μA, UL1581-1990 requires the series of sparks machine using epoxy casting high-voltage transformer, moisture-proof performance, strong anti-interference ability, they can always check the work is normal with self-test button (breakdown, count , sound and light alarm) to ensure test accuracy.
Technical parameters
| Input voltage | 220V/±10%, 50/60Hz |
| 0utput voltage | (0~10KV), (0~15KV),( 0~25KV). For building cable we suggest (0-15KV) |
| The capacity of high voltage transformer | 300VA |
| The maximum linear velocity | 400~600m/min, 240m/ minutes (American Standard), 480m/ minutes (GB) |
| The electrode length | 600mm or 800mm, 800mm (American Standard), 400mm(GB) |
| The breakdown current | 1, 2, 5, 10, 20, 100mA |
| Sensitivity | 0.6Ma |
| Dimension(D×W×H) | 600×1500×700mm3 |
| Weight | 100kg(appr) |
| Power supply | AC220V, 1.6A, 50/60HZ |
