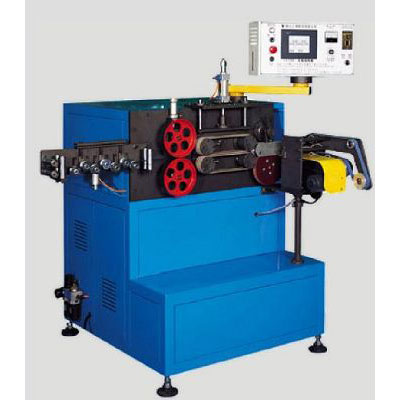

Microcomputer Precision Cutting Machine

Application

Apply to all kinds of wire cable length fix cutting.

Characteristic

Adopt PLC microcomputer + servo system + pneumatic control,consitute of strengthen device,meter

counting device,belt drive system,wire cutting device ,wire feeling device ,belt dragging

device and wire push device.Cutting length ,wire quality of each bundle and accumulating length

can be set freely.

Specifications

Application	Apply to all kinds of power cable,plug wire and electric connection cables cutting and tie into bundles.
Cutting capacity	Round cable Φ4.0mm-Φ14mm,Fat cable 2.0 × 4.0mm-11 × 24mm
Min.removal of length	600mm
Cable drawing way	Pneumatic push wire
Max speed	240m/min
Length range	600-99999mm(max) adjustable
Cutting precision	±3m
Cable feeling way	Iron shaft,wooden shaft,constant tension giving wire.
Cable feeling diameter	A,Φ1000-Φ1200mm.B,Φ1200-Φ1400mm

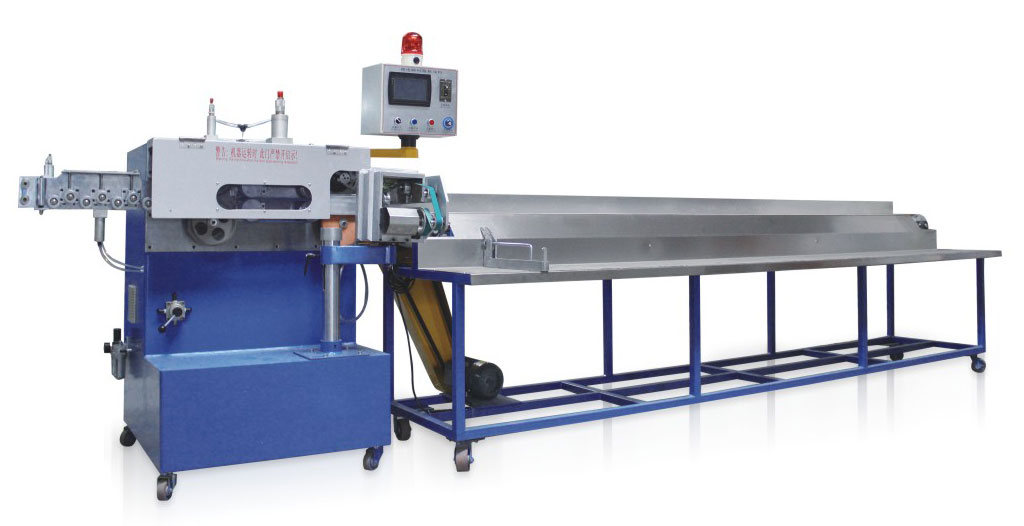

Main configuration	Dynamic wire pay-off machine,tension stand ,cutter main unit,electric control box,convey platform
Dynamic	Wire pay-off machine 2HPVS ,main unit 3HP , conveyer platform 2HP inverter speed control
Power	3 phase 380V,frequency 50HZ
