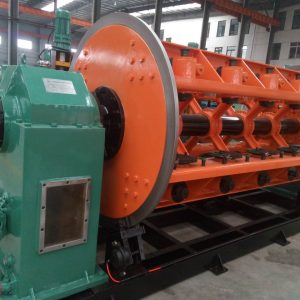

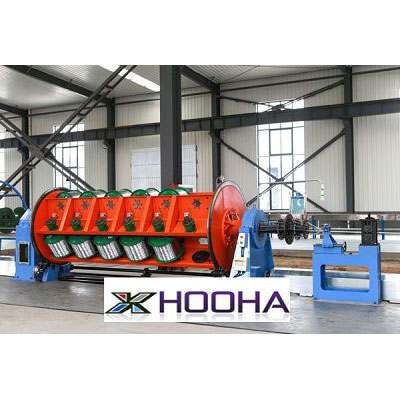

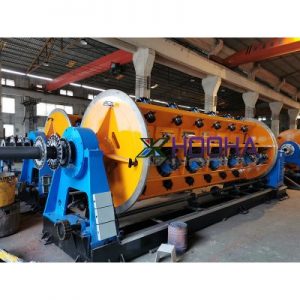

JLK Frame stranding machines
Application of the equipment：
The machine is suitable for stranded copper wire, aluminum wire, ACSR conductor
stranded, circular, fan-shaped or brick core can also be used in insulated cores
twisted, small and medium-sized cable fire wrapped
The main technical parameters： Device Center high 1000mm
| No. | Parameter name | Unit | JLK400/12+18+24Type | JLK500/12+18+24Type | JLK630/12+18+24Type |
| 1 | The diameter of the wire core | mm | Copper 1-4
Aluminum 1.5-5 |
Copper1.4-4
Aluminum 1.5-5 |
Copper 1.5-4
Aluminum 1.8-5 |
| 2 | Stranded maximum diameter | mm | 40 | 50 | 60 |
| 3 | Maximum speed | r/min | 165 | 141 | 125 |
| 4 | Stranding pitch | mm | 10～888 | 48～959 | 64～1152 |
| 5 | Traction speed | m/min | 1.8～52.4 | 6.8～58.5 | 8～61 |
| 6 | Reel specifications | mm | PN400 | PN500 | PN630 |
| 7 | Around Baotou speed | r/min | 229～1435 | 120～493 | |
| 8 | Baotou pitch | mm | 1～228 | 17～630 | |
| 9 | Reel size | PN1000～PN2000 | PN1000～PN2000 | PN1250～PN2500 |
