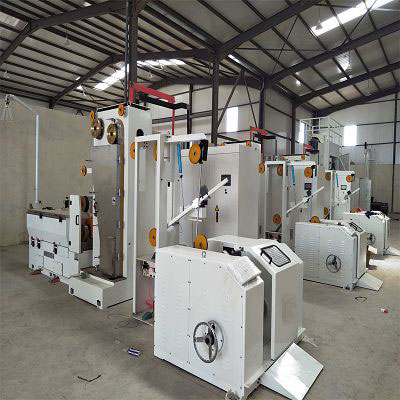

Horizontal fine wire drawing machine with dual-inverter
| wire drawing machine | ||
| Model | SMD120/24 | SMD100/24 |
| control system | digital readout button or LCD computer control | |
| power control | dual inverter | |
| wire inlet diameter | 0.15-0.45mm | 0.12-0.35mm |
| wire finished diameter | 0.05-0.12mm | 0.04-0.10mm |
| max wire speed | 2000m/min | |
| max dies NO. | 24 | |
| mechanical elongation | 10%+7% | 13%+8.7% |
| construction of the machine body | one block casted, leveled four shafts | |
| drawing capstan | import ceramic coated | |
| capstan diameter | 120mm | 100mm |
| fix speed capstan diameter | 120mm | 100mm |
| spool bobbin size | 260*215*216mm | 220*178*216mm |
| transmission type | import advanced flat belt drive | |
| drawing/take up motor | AC11kw/AC4kw | |
| traversing unit | synchronous motor and flat belt | |
| main motor | 4kw | |
| spool motor | 2.2kw | |
| tension adjustment | weight type tension pulley | |
| fix system | automatic control of take up by PID | |
| max loading capacity | 50kg | |
| lubrication capacity | 30L/min | |
| lubrication type | spraying | |
| brake | magnetic brake | |
| power source | 380V,50/60HZ | |
| dimensions | 2.6*1.55*1.6M | |
| weight | 1500kg | |
