Cable Machines Manufacturer

High Speed Winding & Braiding Machine

SKU: HZ-WB836 Category:

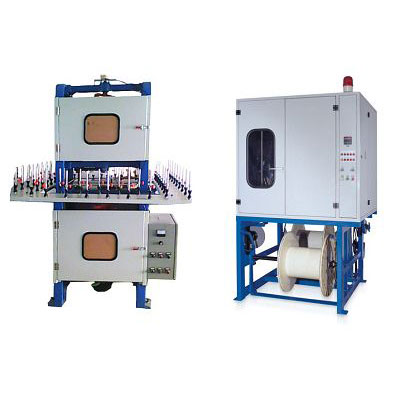

High Speed Winding & Braiding Machine



Application

Applicable to computers,mobile phones,televisions,tape recorders,audio systems,electronics,

such as shielding circuit.






Specifications

Main shaft speed 800rpm
Power 2HP 4line 3phase 380V
Inverter 2HP stepless control(from Taiwan)
Core size Φ0.5mm-Φ4.0mm
Copper core size Φ0.06mm-Φ0.18mm
Twist distance 8.5mm-40.0mm
Pay-off spool size Φ400mm
Take-up spool size Φ400mm
Workbench take-up size 56pan × D130 × D60 × inside 120mm × hole Φ20mm
Weight 622kg
