· Name: Waterproof Tester
· Model: LX-500

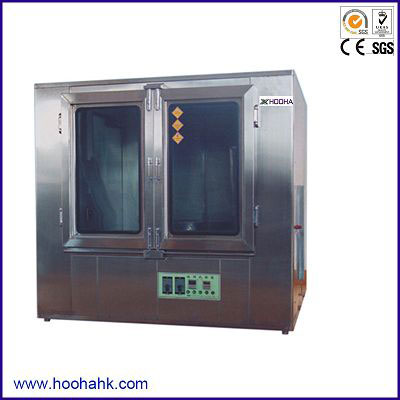

Name: Waterproof Tester
Model: LX-500
Purpose:
This tester applies for the function test of electronics, measurements, shell, sealed parts under watering circumstances. The cabinet is fully made of stainless steel with transparent observation window, with a turntable for specimen in test cabinet, with variable frequencyspeed adjuster, working angle：90°，180°& 270° for option.
Specification:
| Model | LX-500 |
| Test cabinet size | 800x800x800mm |
| The centre height of the swing tube | 600mm～1200mm Adjustable |
| The diameter of swing tube | R0.4m、0.6m、0.8m、1.0m Optional |
| Spray hole | ￠0.4mm, The distance between two holes 50mm |
| The raining force | 100～500Kpa |
| The turnplate of the specimen | ￠200mm～800mm Optional,
Rotation speed 1～3rpm Adjustable |
| Main unit dimension (WxDxH) | 1200x1100x1400mm |
| Main unit weight | 300 Kg |
| Power supply | AC220V 50Hz 5A or specified by user |
