· Name: Vertical type freezing tester
· Model: RS-8320B

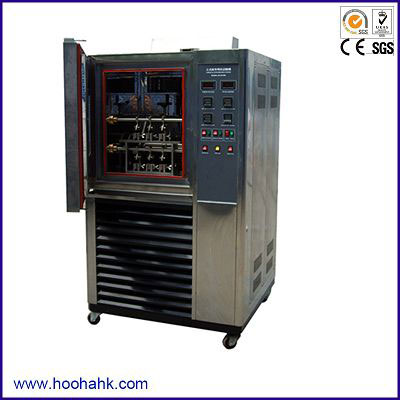

Name: Vertical type freezing tester
Model: RS-8320B
Purpose:
This tester is used for hardy capability of rubber, plastic, shoe sole, shoe unit, mixable leather material and parts, to get the material and parts’s hardy capability in cold or low temperature. Simulate a cold condition, putthe samples in to check the hardy capability.
Specification:
| Model | RS-8320B |
| Produce spec. | ASTM D1790,D1593,JIS K6545,HB-T2877 |
| Temp. range | -50℃ |
| Temp. accuracy | ±0.5℃ |
| Temp. uniformity | ±2℃ |
| Cooling down | Normal temp. at 20℃, need 70min from 20~50℃ (free load) |
| Counter | LCD,0~999,999 times |
| Speed | 100±5cpm |
| Angle | Ross:10~90° can adjustable,
wind value is 22.5°(fixed), bending can set from 0~ 90° |
| Interior | About 600x500x600mm |
| Dimension (WxDxH) | About 980x1000x1850mm |
| Weight | About 300kg |
| Power | 3∮AC380V,6KW
(can specified basis on different countries) |
