· Name: Standard Dust Tester
· Model: SC-500 / SC-1000

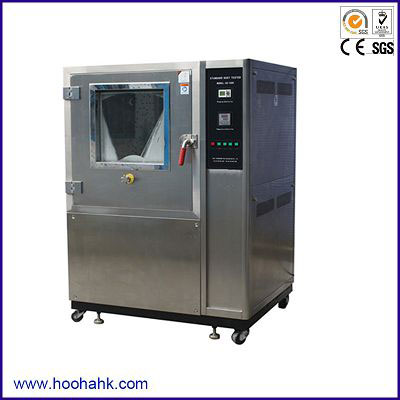

Name: Standard Dust Tester
Model: SC-500 / SC-1000
Purpose:
This machine applies for electronic, houseware, motor unit to evaluate the resistance, storage and running under the exposure of dry sand or the atmosphere with plentiful dusty.There is a big observing window convenient for dust test observation, also
with digitally intelligent adjustor to ensure the control precision of temperature and humidity. Dust tester is composed of test
cabinet and auxiliary equipment.
Standards:
IEC60529-2001, GB/T4208, GB/T2423.7
Specification:
| Model | SC-500 | SC-1000 |
| Working-room Dim(WxDxH) | 800x800x800 | 1000x1000x1000 |
| Temperature of heated dust | RT～60℃ | |
| Humidity | <30%R.H | |
| Sand size | 150m 850m | |
| Dust size | ＜149m | |
| Ingredient of sand and dust | Silic powder (95% SiO2) | |
| Test time set | 0.01min～99H59min ( can set ), continuous 8 hours | |
| Main unit dimension (WxDxH) | 1200x1050x1730mm | 1400x1250x1950mm |
| Main unit weight | 300 Kg | 400 Kg |
| Power supply | AC220V 50Hz 2KW or specified by user | AC220V 50Hz 2.2KW or specified by user |
