High Quality Shaftless Take-up Pay-off Machine

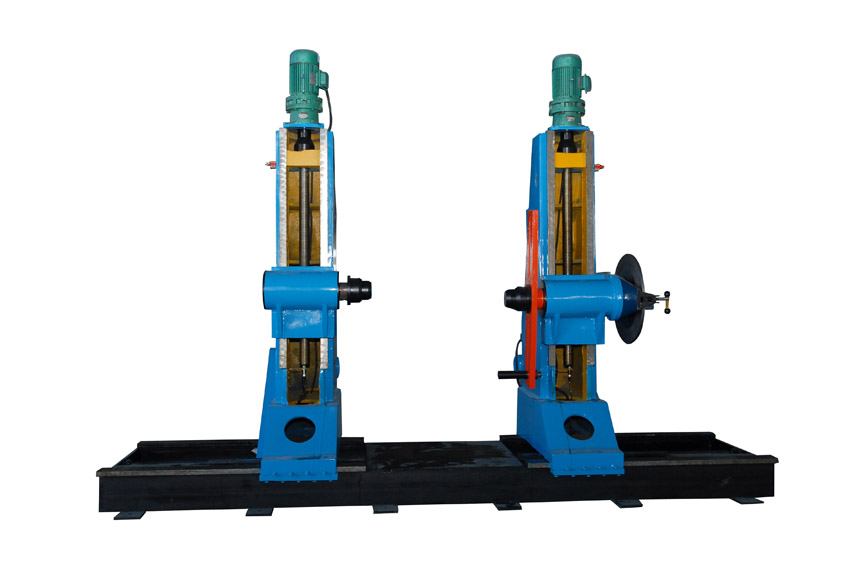

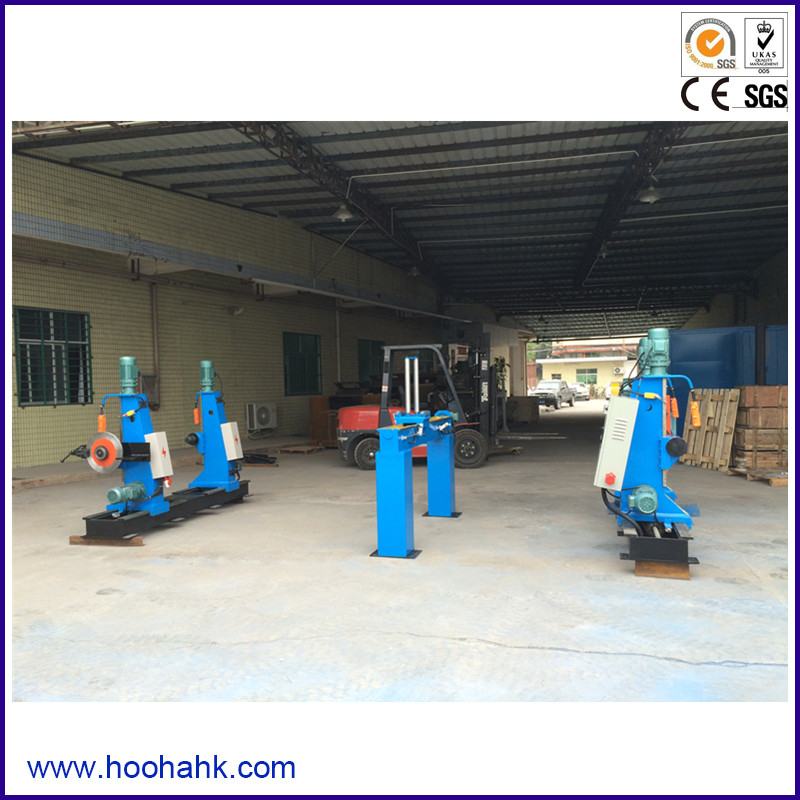

Shaftless Take-up(Pay-off ) Machine

Application
They are mainly used to roll all kings of cables.

Specifications

Machine model	HH-1250	HH-1600	HH-2000	HH-2500	HH-3150
Spec. of suitable wire coil(mm)	800-1250	800-1600	1250-2000	1600-2500	1600-3150
With of suitable wire coil(mm)	600-950	600-1180	950-1500	1180-1900	1180-2300
Diameter of suitable cable(mm)	<=25	<=35	<=50	<=60	<=100
Max load capacity	4T	5T	10T	12T	18T
Take-up speed(rpm)	18.8-47.6	18.8-47.6	6-15.5	6-15.5	3.27-13.79
Elevating motor(kw)	1.1	1.1	1.5	1.5	2.2
Moving motor(kw)	0.75	0.75	1.1	1.1	1.5
Take-up torque motor	JLJ132-40/4	JLJ132-40/4	JLJ160-60/6	JLJ160-60/6	JLJ160-60/6
Traversing unit	Screw rod
Traversing pitch(mm)	5-40	4-40	10-80	10-100	25-140

Spare Parts Brands:
Motor: Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin

Afetr service
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

Contact information
Http:www.hoohahk.com
Http:hoohaco.en.made-in-china.com
Add:No.Beice District, Humen Town, Dongguan City, Guangdong Province,China

If the machine is not suitable for your wire spec., please contact me.

Why us?
1.We are the cable equipment manufacturer.
2.Professional engineer,long term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like Siemens ,Omron,NSK,LG etc.
5.Install and training service.Guarantee overseas install and cable manufacture training experience.
6.Technical support and spare parts service.
