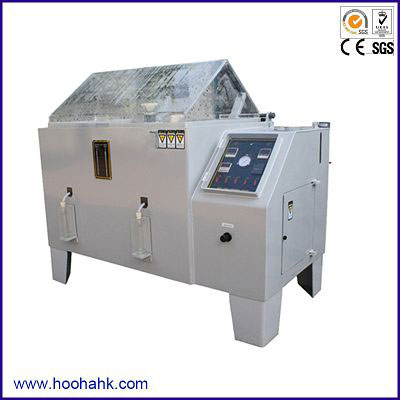

Name: Salt Spray Tester
Model: YWX/Q-150/250/750/1000
Purpose:
This tester is used for the surface erosion resistance test of kinds of material processed by paint, plating, anodized.
Standard:
GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201, H8502, H8610 , K5400 Z2371
Specification:
| Model | YWX/Q-150(60) | YWX/Q-250(90) | YWX/Q-750(120) | YWX/Q-1000(160) |
| Test room size(WxLxH)(mm) | 600x450x400 | 900x600x450 | 1200x850x500 | 1600x1000x600 |
| Machine size (WxLxH)(mm) | 1130x630x1070 | 1460x910x1280 | 2200x1200x1450 | 2600x1450x1600 |
| Lab temperature | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C | |||
| Saturator temperature | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C | |||
| Humidity | 85%~98%RH | |||
| Temperature range | ± 0.5℃ | |||
| Salt spray subside | 1.0~2.0ml/80cm2/h | |||
| Power suppy | AC220V 10A or specified by user | AC220V 15A or specified by user | AC220V 20A or specified by user | AC220V 30A or specified by user |
