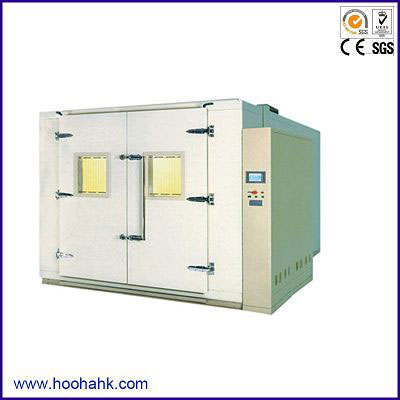

High quality Programmable Temperature & Humidity Tester

· Name: Programmable Temperature & Humidity Tester

· Model: BRS Series

Name: Programmable Temperature & Humidity Tester

Model: BRS Series

Purpose:

This chamber is suitable for the products to do the temperature and humidity testing. Inner box size, the temperature and

humidity range, and special requirements can be customized.Laboratory floor loading capacity: 600kg/m2 (uniform load).

Application:

1. Computer, TV, monitors, printers, fax and other electronic products to do the whole resistance to heat and cold test.

2. LED, PCB and other products do the high temperature aging test.

3. Automobile to do the high and low temperature damp heat test.

Specification:

Model	BRS Series ( 4m³～120m³specified by user )
Temp-range	A:－20℃～＋150℃, B:－40℃～＋150℃, C:－70℃～＋150℃
Humid-range	20% R.H ~98% R.H ( Can specified low temp and low humid )
Temp. Accuracy	±0.5℃
Humid. Accuracy	±3%R.H
Heating and cooling speed	5℃/min, 10℃/min, 15℃/min (Standard load 5～30Kg Aluminum Ingot )
Interior material	Stainless steel SUS304 (mirror)
Exterior material	Spray-paint zinc plating steel panel
Thermal Insulation material	Hard polyfoam+ glass fiber
Cooling system	Cooling by Bitzer semi hermetic compressor
Accessories	Observation window( double tempered glass), Double-door:0.8×1.8M，Anti-explosion light, Interior LED lighting, control box 1set
Safety device	Switch, Over voltage protection, over heat protection, over current protection over temperature protection and water-lacking protection for Compressor.
