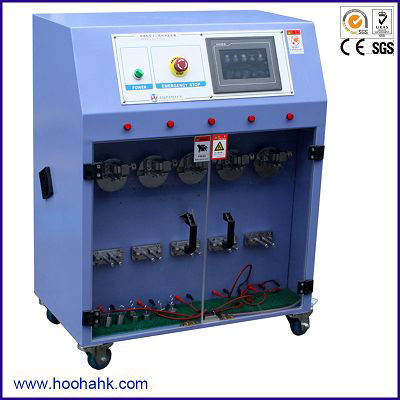

· Name: Cord Bending Tester
· Model: HH-8105A-5 / HH-8105A-10
Purpose:
The tester is suitable for the bending testing of the multi-wires cable, communication cable, earphone cable etc. The testing method is short –circuit connecting one end cable and fix this end on the rotation plate, and put the weight on the cable then to do the left and right rotation, to check the cable if conducting after some rotation testing and evaluate the quality of the cable.
Specification:
| Model | HH-8105A-5 | HH-8105A-10 |
| Test amount | 5 PCS | 10 PCS |
| Control system | LCD+PLC | |
| Driving system | Servo motor | |
| Test speed | 1～60cpm±2cpm | |
| Angle range | 0～180° | |
| Min display angle | 1° | |
| Testing cycles | 1～999,999times | |
| Guide pole | R1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm (changeable) | |
| Dia.of Rotation plate | 80mm | |
| Weights | 50g, 100g, 150g, 250g, 300g | |
| Dimension (WxDxH) | 780x460x940mm | 1380x460x940mm |
| Weight | 150kg | 300kg |
| Power supply | AC220V ,50Hz 10A or specified by user | |
