High quality Automatic type flameproof testing machine

SKU: HH-001 Category:

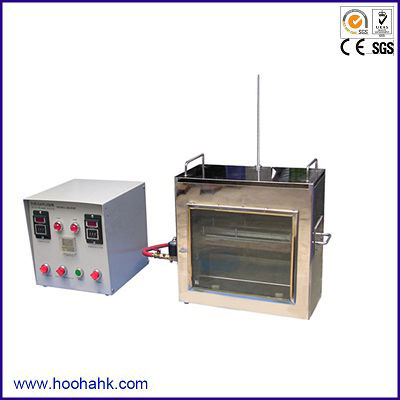

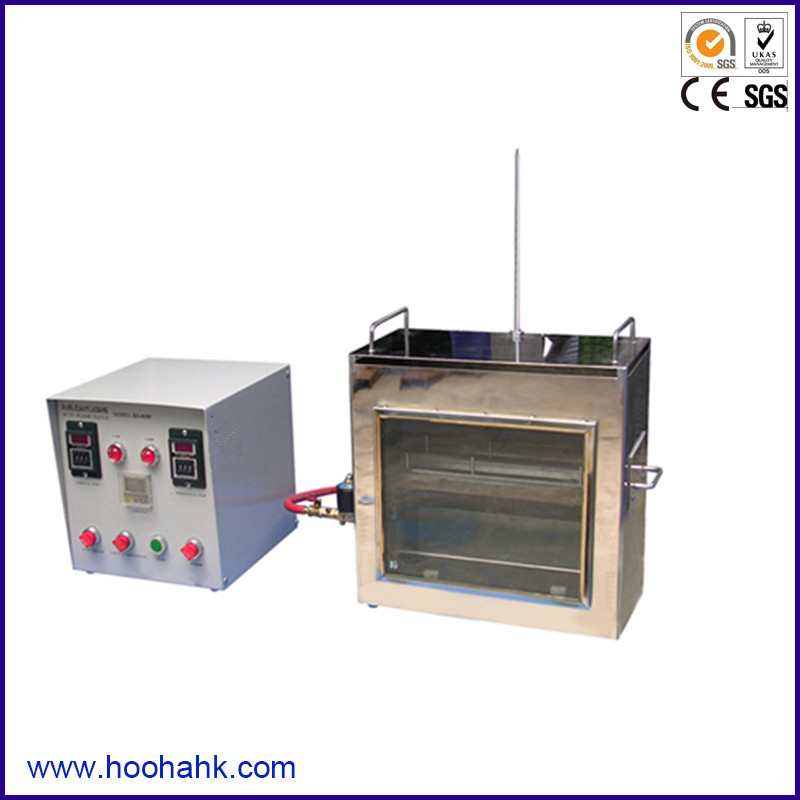

Name: Automatic Flame Tester

· Model: HH-8109



Name: Automatic Flame Tester

Model: HH-8109



Application:

This machine is to evaluate fire resistance, flame resistance property and fire resistance grade determination of plastic,

insulation materials and superposition materials; This machine adopts the electromagnetic valve to control on-off of gas

circuit (fuel: Gas and Methane) to realize flame resistance test. Accurate burning/stop of vertical engine or horizontal

type engine is assured due to chronometer time relay produced in Japan is adopted.



Standard:

Design of this apparatus is applicable to fire resistance property test specification and requirement of UL94 and UL746.



Specification:

Model HH-8109 Vertical HH-8109 Horizontal HH-8109 Automatic
Length of specimen 300, 457mm
Fuel Methane, gas
Timer 2sets 0~99sec
Counter 0~999,999times
Weight 12kg 10kg 28kg
Dimension (WxDxH) 320x370x670mm 620x320x350mm Control box 340x240x330mm
Power AC220V 1A or specified by user
