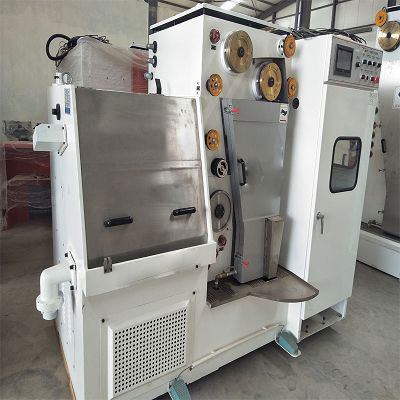

Fine wire drawing machine with annealer
| wire drawing machine with annealing | |
| Model | 24DHT-VG150 |
| control system | digital readout button |
| power control | dual inverter |
| wire inlet diameter | 0.5-1.2mm |
| wire finished diameter | 0.1-0.32mm |
| max wire speed | 2000m/min |
| max dies NO. | 24 |
| mechanical elongation | 13%+8.7% |
| construction of the machine body | steel plate welded and annealed,vertical four shafts |
| drawing capstan | ceramic coated |
| capstan diameter | 242mm |
| fix speed capstan diameter | 206mm |
| spool bobbin size | 300*215*270mm |
| transmission type | import advanced flat belt drive |
| bobbin loading unloading type | expansion shaft or single shafts cone |
| main motor | 11kw |
| spooler motor | 4kw |
| tension adjustment | weight type tension pulley |
| fix system | automatic control of take up by PID |
| max loading capacity | 50kg |
| lubrication capacity | 50L/min |
| lubrication type | spraying |
| brake | magnetic brake |
| lubrication type for bearing | without oil |
| annealing control | 4 poles DC current output |
| annealing capacity | 21 KVA |
| annealing voltage | 0-57V |
| annealing current | 300A |
| total power | 15kw+21KVA |
| power source | 380V,50/60HZ |
| Steam consumption | 6-9kg/h 0.2-0.3MPa |
| coiling water consumption | 4-8m³/h 0.2-0.25MPa |
| air consumption | 15-25m³/h 0.4-0.6Mpa |
| dimensions | 4.7*2.5*2.3M |
| weight | 3000kg |
