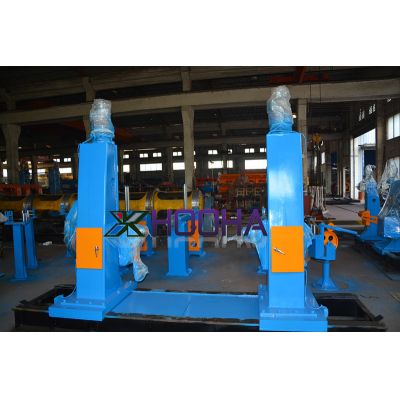

CPD cable shaft end closing
Application of the equipment：
The machine as a universal cable auxiliary equipment, is widely used in cable
production process into the cable, squeeze the plastic, steel tape armored,
copper tape shield, non-woven fabric wrapped over the line when closing line
The main technical parameters:
| No. | Parameter name | Unit | CPD1600 | CPD2000 | CPD2500 | CPD3150 |
| 1 | Reel size | mm | PN800-1600 | PN1000-2000 | PN1250-2500 | PN1600-3150 |
| 2 | Maximum load capacity | kg | 4000 | 6000 | 9000 | 12000 |
| 3 | The biggest closing line diameter | mm | 30 | 60 | 80 | 100 |
| 4 | The closing line speed range | m/min | 12-283 | 7-166 | 1.6-87 | 1.9-90 |
