Computer Flat Wire And Color Flat Wire Extrusion Line

SKU: HZ-WE-50-26D Category:

Computer Flat Wire And Color Flat Wire Extrusion Line



Application

Specializes in producing computer that line such as UL2488,2651,2678.

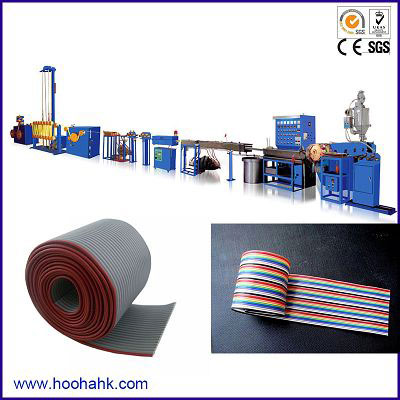

Color Flat.jpeg

Trait

Machine head adopts automatic type and special line-storing set.

Because of Taiwan technology’s introduction and our many years’ making experience,we elevates line’s extrusion speed,solve many problems such as uneven thickness and poor adhesion,uneven tension,copper line’s shrinking after cutting.The rejection rate significantly reduced,become best choice of manufacturers.

Manufacturers can select diameter-test instrument in order to control line’s width.




Specifications

Machine model ZY-WE-50-26D ZY-WE-70-26D ZY-WE-80-25D
Cylinder diameter(mm) φ50 φ70 φ80
Screw L/D 26:1,10-100rpm 26:1,10-80rpm 26:1,110-70rpm
Extrusion capacity(kg/h)/ 80 140 200
MAX Line speed(m/min) 200 150 150
Wire supply tray(mm) φMax300
Extrude motor 15HP

motor controlled

inverter

30HP

motor controlled

inverter

40HP

motor controlled

inverter

Combined number 1-16 1-64 1-80
Tows power(HP) 3 5 7.5
Take-up line motor power(kw) 1.5 2.2 3.7
