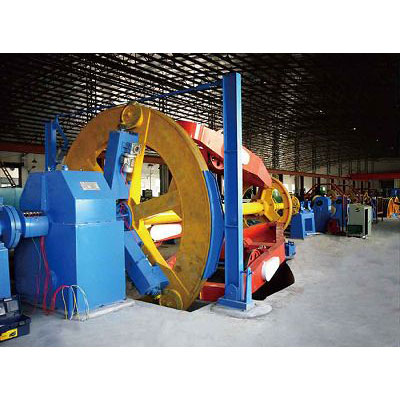

CLY Cage type cabling machine

Application of the equipment：

This machine is widely used for a variety of large cross-section of the three core,

four-core and five core plastic power cables, cross-linked polyethylene cable into a cable and

armored.The shape of the wire core may be round may also be fan-shaped or arcuate.

Advanced practicality and performance of the machine, beautiful appearance, easy operation,main

tenance and repair, is the choice for small and medium-sized cable factory equipment.

The main technical parameters： Device Center high 1000mm

No.	Parameter name	Unit	CLY630 Type	CLY1000 Type	CLY1250 Type	CLY1400 Type	CLY1600 Type
1	Line core.cross-sectional area	mm²	2.5～16	10～120	16～185	25～240	50～400
2	Cabling diameter	mm	40	50	60	80	100
3	The speed of the machine	r/min	24.6～56.5	11.1～25.1	9.5～21.5	6.8～15.5	4.3～9.6
4	Cabling pitch	mm	90～2889	90～2889	180～3095	278～4766	448～7605
5	Traction speed	m/min	2.4～33.1	2.2～32.7	3.87～29.4	4.3～32.7	4.3～32.7
6	Reel specifications	mm	PN630	PN1000	PN1250	PN1400	PN1600
7	Around Baotou speed	m/min	191～781	108～444	108～444	108～444	108～444
8	Baotou pitch	mm	3～173	5～302	8～272	9～302	9～302
9	Baotou Steel speed	r/min	139～568	81～323	81～323	81～323	81～323
10	Baotou Steel Pitch	mm	4～238	6～403	12～362	13～403	13～403
11	Reel size	mm	PN100～PN1600	PN100～PN2000	PN1000～PN2000	PN125～PN2500	PN140～PN2800
