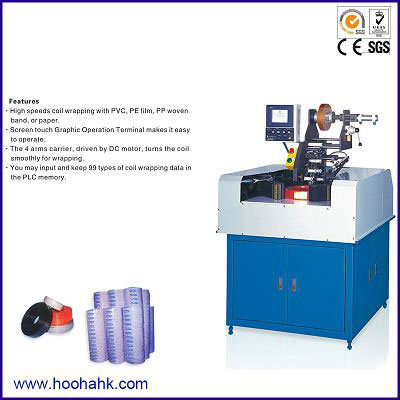

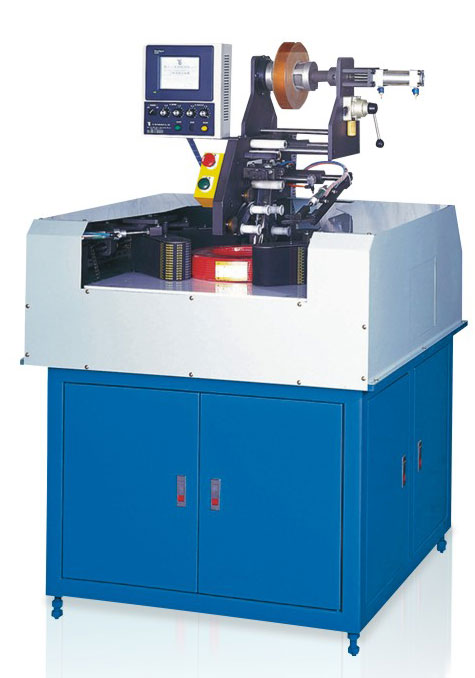

Circular Shape Automatic Wrapping Machine
Features
High speeds coil wrapping with PVC ,PE film ,PP woven hand ,or paper .
Screen touch graphic operation terminal makes it easy to operate .
The 4 arms carrier ,driven by DC motor ,turns the coil smoothly for wrapping .
You may input and keep 99 types of coil wrapping data in the PLC memory .
Specifications
Machine model | P70 | P100 | P120 | P140 | P18 | P210 | |
Height(mm) | 30-70 | 50-100 | 70-120 | 70-140 | 90-180 | 100-210 | |
O.D.(mm) | 200-360 | 220-460 | 220-460 | 300-600 | 320-600 | 400-800 | |
I.D.(mm) | 140 | 150 | 160 | 180 | 200 | 250 | |
Coil max. weight (mm) | 25 | 35 | 40 | 100 | 150 | 200 | |
Wrapping material | PVC,PE film | PVC,PE film PE woven band paper | |||||
Width of packing material(mm) | 45 | 45 | 55 | 55 | 75 | 75 | |
Thickness of packing material(mm) | 0.04-0.07 |
