Application：
It is suitable for various power wire, CAT 5 and ultra CAT 5 and CAT 6 data cable,communication cable and other special cable for high speed cabling twist,meanwhile, finish central wrapping.

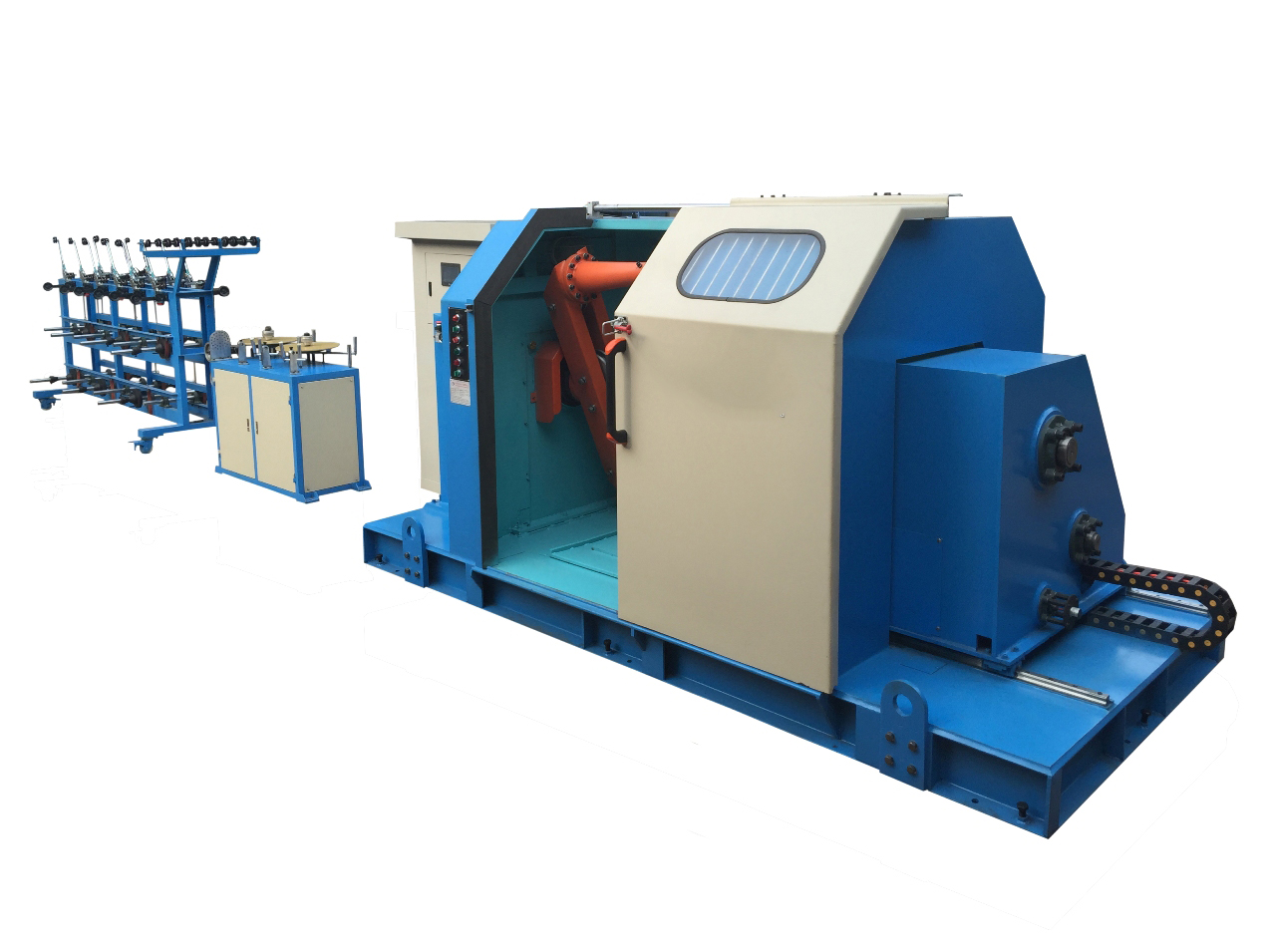

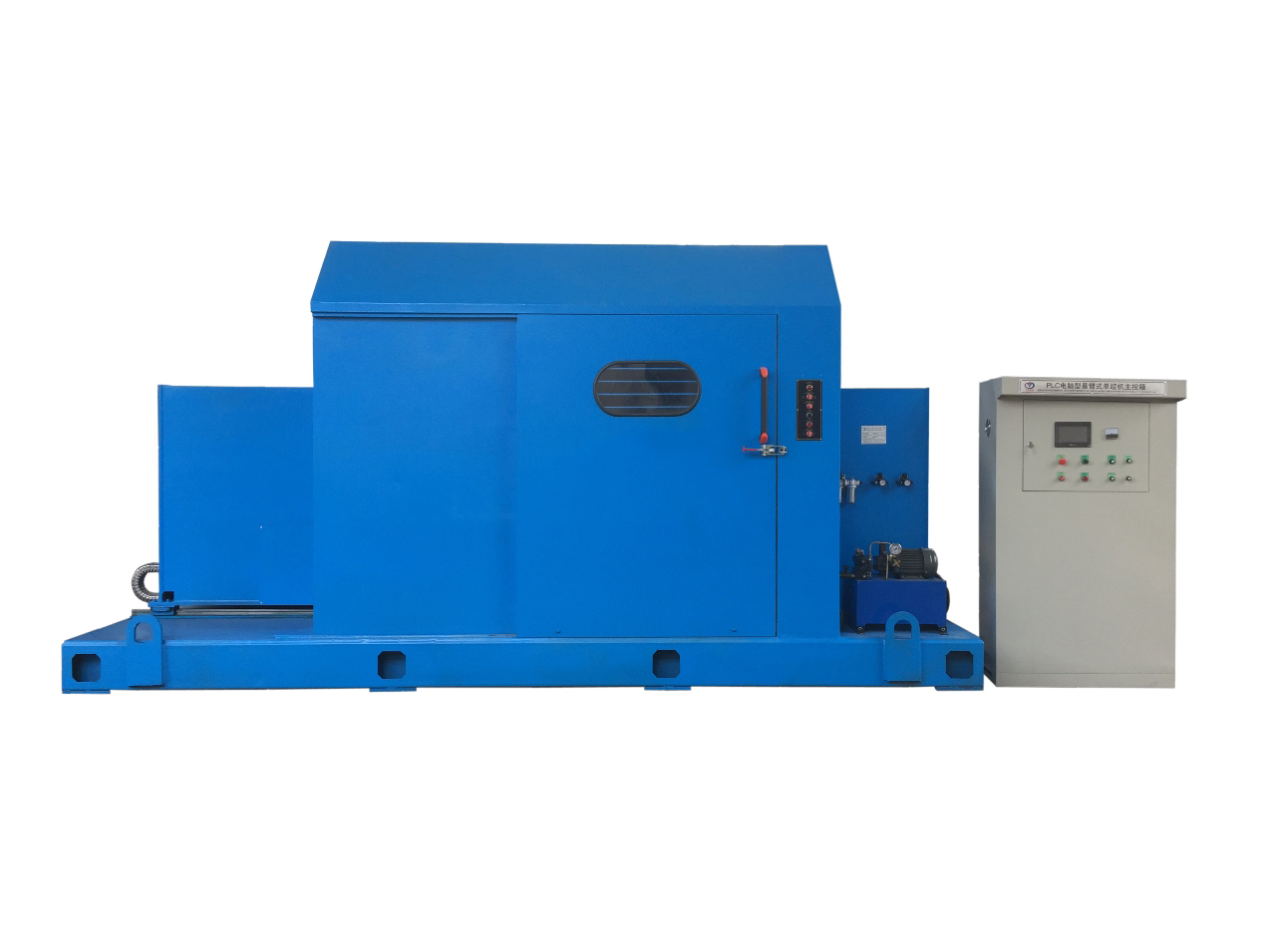

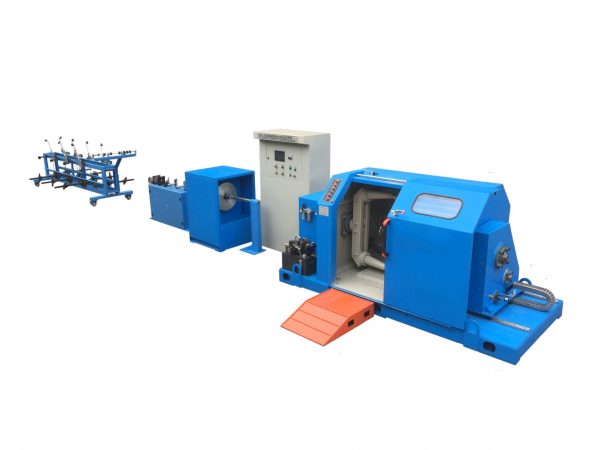

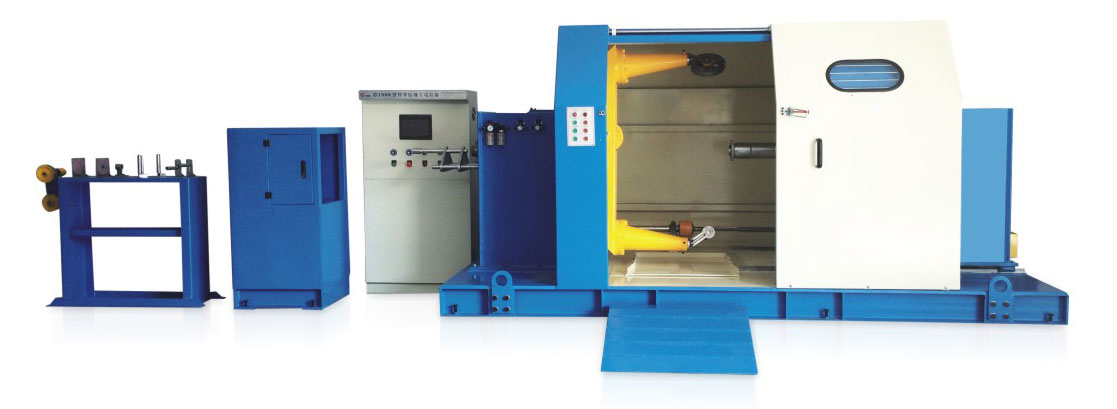

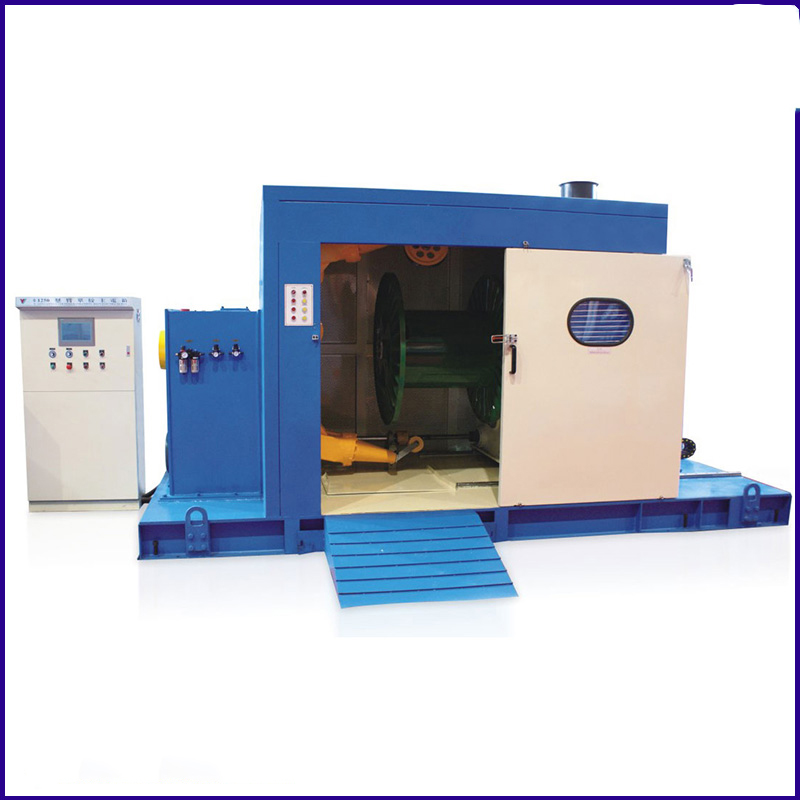

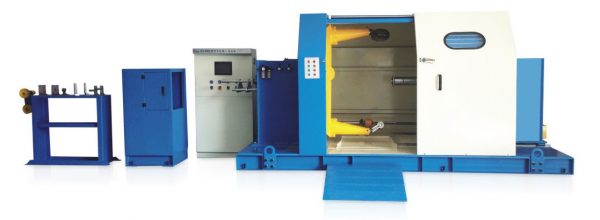

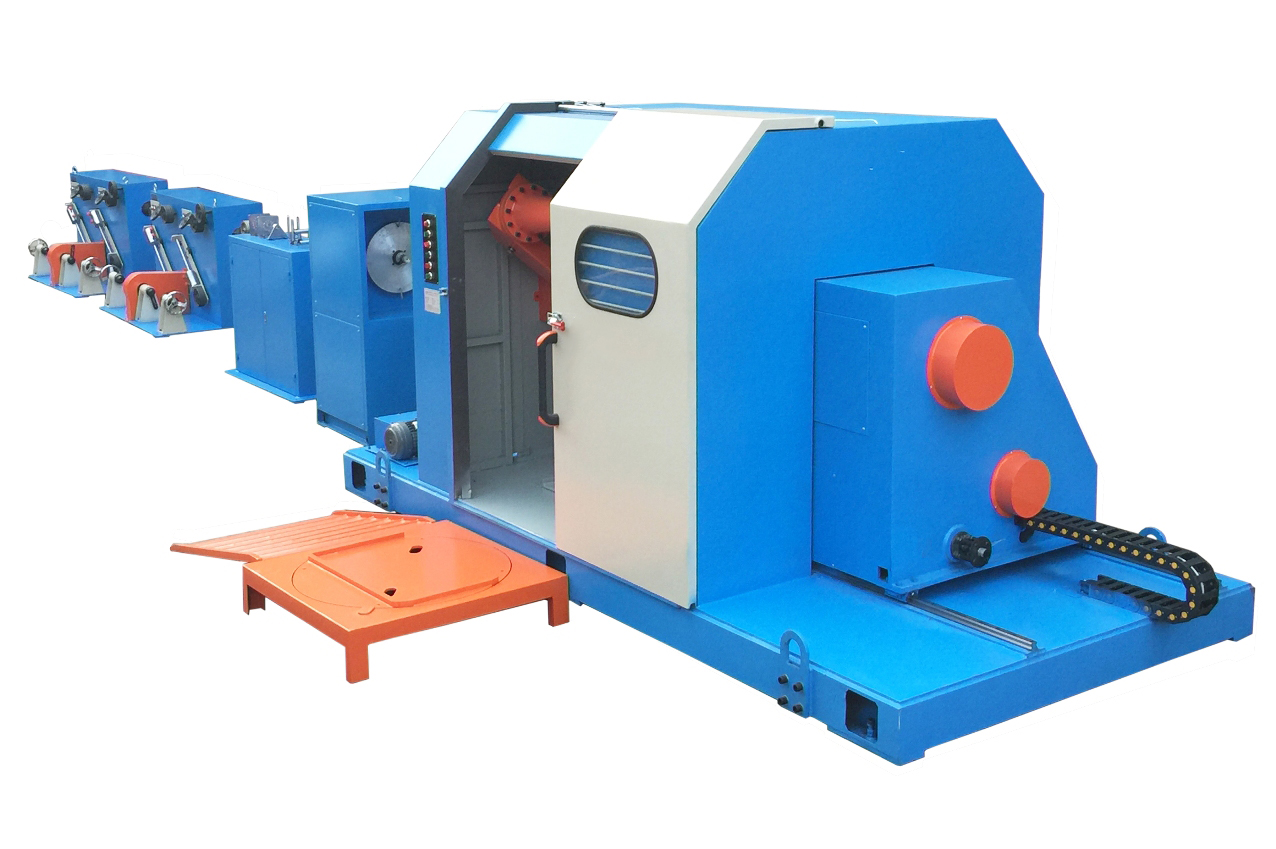

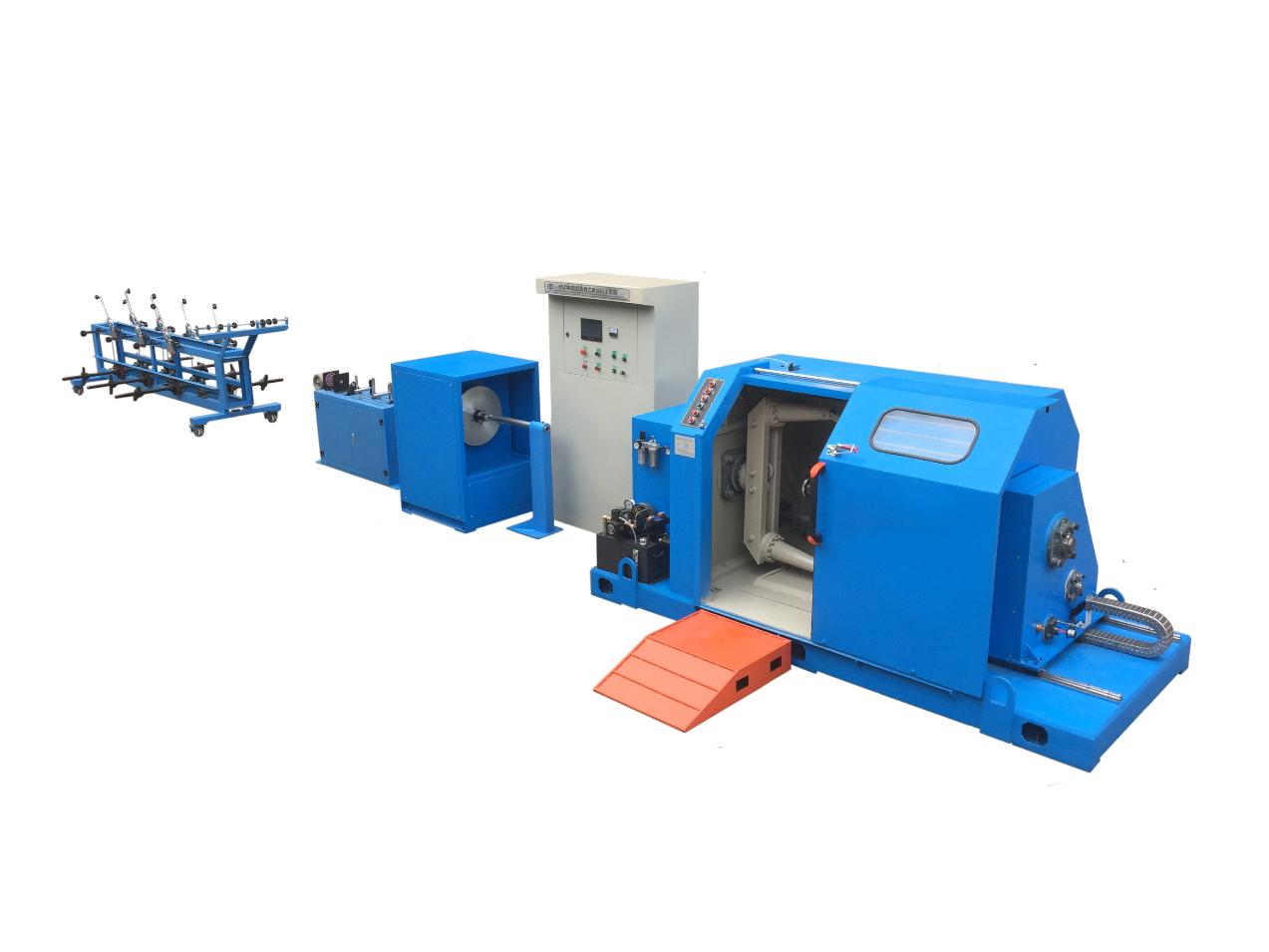

Available model of twist cabling machine
| Model | CD-Φ400-Φ500 | CD-Φ630 | CD-Φ800 | CD-Φ1000 | CD-Φ1250 |
| Pay off bobbin(mm) | Φ300-Φ400mm | Φ400-Φ500-Φ630 | 400-Φ500-Φ630 | Φ400-Φ500-630 | Φ400-Φ500-630 |
| Take up bobbin(mm) | Φ500 | Φ630 | Φ800 | Φ1000 | Φ1250 |
| Wire diameter(mm) | Φ0.5- Φ2.0 (Soft structure) | Φ0.6- Φ3.0(Soft structure) | Φ0.6-Φ3.0(Soft structure) | Φ1.0-Φ5.0 (Soft structure) | Φ1.0-Φ5.0 (Soft structure) |
| Max twsit diameter(mm) | Φ6 | Φ15 | Φ20 | Φ25 | Φ30 |
| Lay length(mm) | 13-80 | 20-200 | 30-300 | 30-350 | 30-350 |
| Roatte speed(RPM) | 850 | 1000 | 800 | 800 | 500 |
| Take-up tension | Auto tension,adjust freely | Auto tension,adjust freely | Auto tension,adjust freely | Auto tension,adjust freely | Auto tension,adjust freely |
| Traverse method | According to bobbin speed reciprocating movement to adjust | According to bobbin speed reciprocating movement to adjust | According to bobbin speed reciprocating movement to adjust | According to bobbin speed reciprocating movement to adjust | According to bobbin speed reciprocating movement to adjust |
| Traverse pitch(mm) | 2.5-10 | 2-12 | 3-20 | 3-30 | 3-30 |
