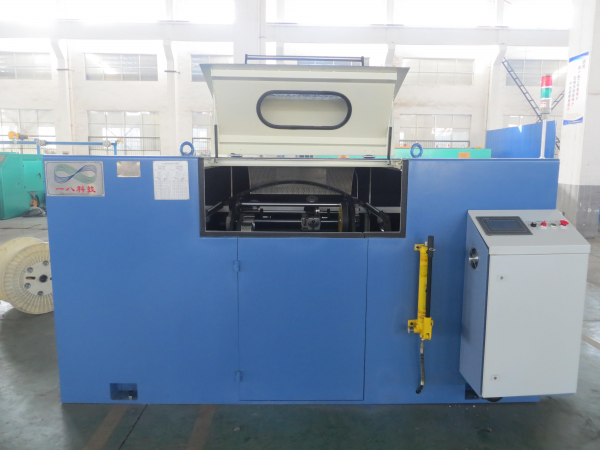

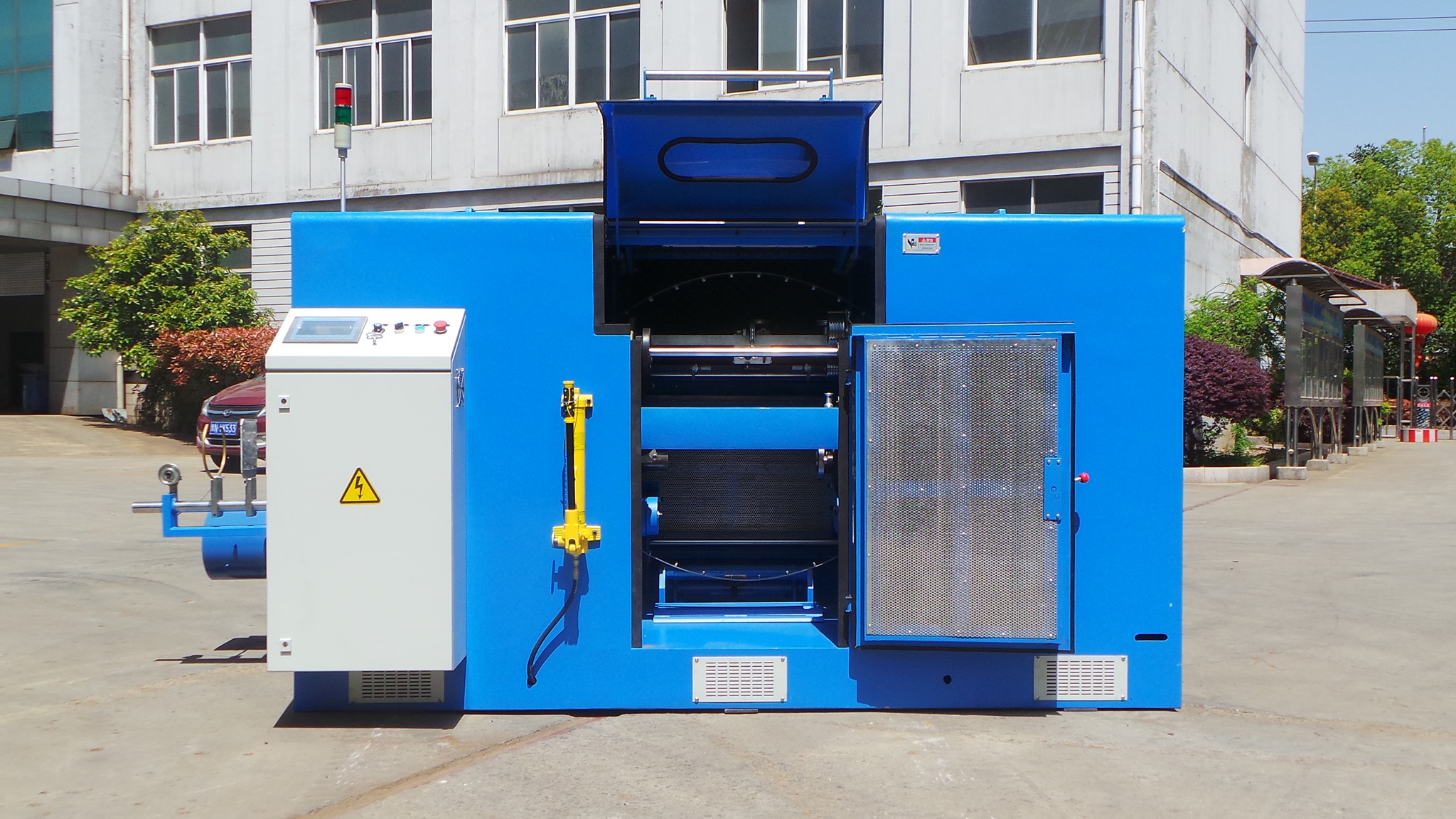

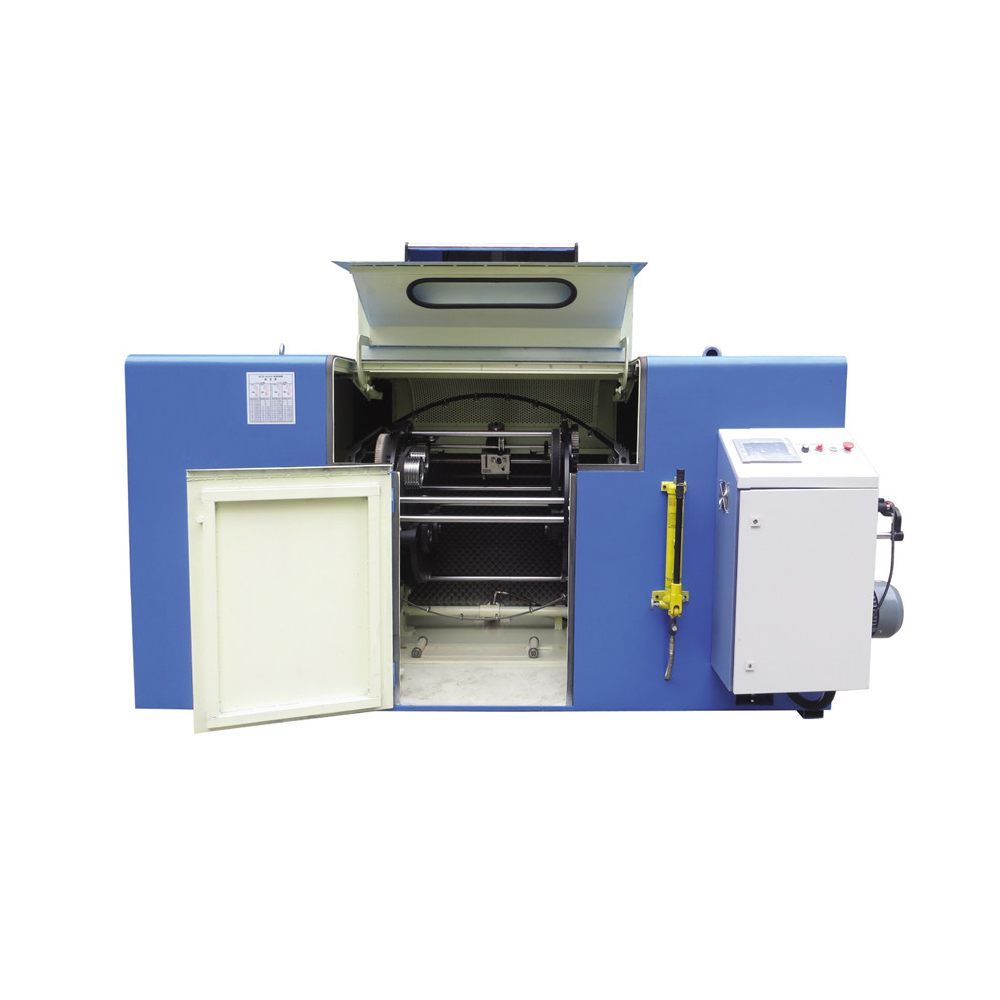

Automatic Double Twist Bunching Machine

Double twist bunching machineis mainly used for stranding multi-stranded copper wires, tinned wires, enameled wires, copper-clad aluminum wires. Description:
1) Full-automatic dual-twisting stranding machine, it is mainly used for stranding multi-stranded copper wires, tinned wires,
enameled wires, copper-clad aluminum wires.
2) 1000 type, 1250 type are also suitable for core wires bunching or laying up small size core wires.
3) Adopt PLC+HMI system control and preset lay pitch , lay direction and take-up tension. The operation is simple.

Category: Double Twist Buncher

Description
Reviews (0)

Available models of Automatic Double Twist Bunching Machine:

Model	CD-300P	CD-500P	CD-500P/B	CD-650P	CD-800P	CD-1000
Use	For bunching bare copper, tinned wire, enameled wire	For bunching bare copper, tinned wire, enameled wire	For bunching bare copper, tinned wire, enameled wire	For bunching bare copper, tinned wire, enameled wire	For bunching bare copper, tinned wire, enameled wire	For bunching bare copper, tinned wire, enameled wire
Control type	PPLC+HMI+Inverter control	PPLC+HMI+Inverter control	PPLC+HMI+Inverter control	PPLC+HMI+Inverter control	PPLC+HMI+Inverter control	PPLC+HMI+Inverter control
Twisting section area((mm²)	0.035～0.45	0.05～2.50	0.05～4.00	0.18～6.00	2.50～16.00	8.00-20.00
Copper wire dia(mm)	Ф0.05～Ф0.25	Ф0.10～Ф0.45	Ф0.10～Ф0.52	Ф0.18～Ф1.00	Ф0.50～Ф1.20	0.72-6.0
Twisting pitch(mm)	2.00～17.17	6.30～50.40	6.30～65.00	11.61～66.03	22.51～152.32	22.73-173.66
Twisting direction	S or Z	S or Z	S or Z	S or Z	S or Z	S or Z
Take-up tension	tension controlled by magnetic clutch	tension controlled by magnetic clutch	tension controlled by magnetic clutch	tension controlled by magnetic clutch	tension controlled by magnetic clutch	tension controlled by magnetic clutch
Max main shaft speed	3000r/min	3000r/min	2500r/min	2000r/min	1200r/min	800r/min
Traversing type	Transverse and distance can be adjusted by bearing transverse	Transverse and distance can be adjusted by bearing transverse	Transverse and distance can be adjusted by bearing transverse	Transverse and distance can be adjusted by bearing transverse	Transverse and distance can be adjusted by bearing transverse	Transverse and distance can be adjusted by bearing transverse
Bearing lubricaiton	lubricating nipple with high temperature oil	Thin oil lubrication, circulation cooling	Thin oil lubrication, circulation cooling	Thin oil lubrication, circulation cooling	lubricating nipple with high temperature oil	lubricating nipple with high temperature oil
Bobbin loading&unloading type	Hydraulic type	Hydraulic type	Hydraulic type	Hydraulic type	Hydraulic type	electric hydraulic type
Max bobbin dia	Ф300	Ф500	Ф500	Ф630	Ф800	Ф1000
Auto stop unit	While reach setting length, inside outside wire break, or other error auto stops	While reach setting length, inside outside wire break, or other error auto stops	While reach setting length, inside outside wire break, or other error auto stops	While reach setting length, inside outside wire break, or other error auto stops	While reach setting length, inside outside wire break, or other error auto stops	While reach setting length, inside outside wire break, or other error auto stops
Brake	Magnetic brake	Magnetic brake	Magnetic brake	Magnetic brake	Magnetic brake	Magnetic brake
Motor power(KW)	4	5.5	5.5	7.5	11	22
Main shaft center height	630mm	700mm	700mm	850mm	900mm	1100mm
