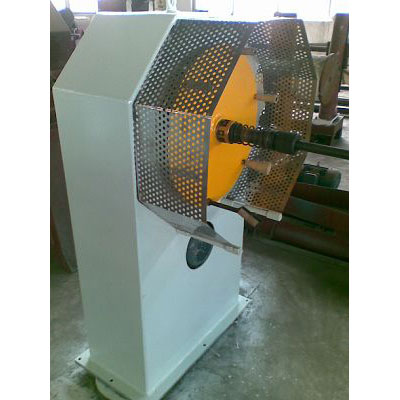

ATC Around the charter

Application of the equipment：

This model applies to copper wire, aluminum wire, ACSR cable mica refractory with

fiberglass tape, BV with non-woven fabric with the parcel.

The main technical parameters： Device Center high 1000mm

No	Parameter name	Unit	Vertical refractory around the charter	The shaft core type around the charter	Common type around the charter
1	Maximum diameter of the wrapped wire core	mm²	8	15	100
2	Maximum diameter of the material	mm	250	450	450
3	Package with a thickness	mm	5~20	10～40	25～60
4	Pack to take the lead in the highest speed	r/min	1000	1000	600
5	Winding pitch	mm	2～55	5～86	8～143
6	Traction speed	m/min	2～55	5～86	4.8～86
7	The number of packets to take the lead		250/1,250/2	1	3
