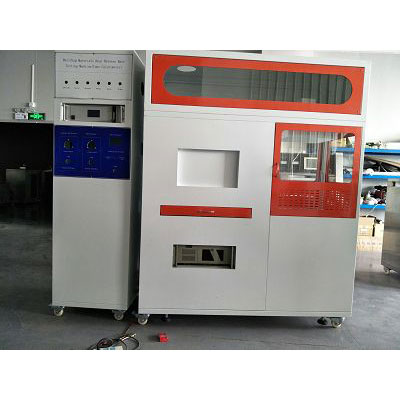

ASTM E1354 and ISO 5660 GB/T 16172 Cone Calorimeter Heat Release Rate Flammability Testing machine

ASTM E1354 and ISO 5660 GB/T 16172 Cone Calorimeter Heat Release Rate Flammability Testing machine

Plastic combustion smoke density meter is based on standard GB / 8323.2 2008

and ISO5659-2 “plastic smoke generated part 2 single room method determination of smoke density test method” stipulated in the technical conditions and developed a new type of determination of smoke density test equipment,

the standard is suitable for the determination of plastic than the optical density of smoke generated during burning,

and to maximize the than light density of the test results. It is used to evaluate the smoke performance of plastic under specified conditions.

1. Application:

Combustion product stream through the oxygen concentration of the oxygen consumption and calculate the heat release rate, heat release rate of the material is also the material properties of the combustion products of the combustion burner of the most important parameters, more accurately measure the material during combustion heat release rate, for predicting fire hazard prevention and fire-retardant treatment is extremely important.

2. Standards:

GB / T16172, ISO 5660-1 and -2, ASTM E 1354, ASTM E 1740, ASTM F 1550, ASTM D 5485, ASTM D 6113, NFPA 271, NFPA 264, CAN ULC 135, BS 476

3. Specification:

1.the radiation cone: heating power 5kw, radiation intensity: 100kw / m2, equipped with three thermocouples to measure the temperature.

2.weighing equipment: imported high-precision electronic scales, weighing 500g, resolution 0.01g

3.the exhaust system: centrifugal fans, hoods, air intake and exhaust pipes as well as the composition of the orifice flowmeter

4.the gas sampling apparatus: sampling pump, particulate filter, dehumidification cold trap, emptying bypass coefficient, water filters, CO2 filter.

5.gas analyzer and key components are imported.

6.with embedded computers and 8.4-inch LCD with TCP / IP and RS-232 communication interfaces choice

7.oxygen measurement:

7.1 Measuring range: 0-25%

7.2, the signal output: 4-20mA;

7.3, the response time: ≤2S;

7.4 Ambient temperature: 0-45 ℃;

7.5 Relative humidity: <90% (non-condensing);

7.6, linearity: <± 0.1% O2;

7.7 Zero drift: 0.05% O2 (one week);

7.8 Repeatability: <± 0.02% O2;

8.carbon dioxide (CO2) measurements:

8.1.measuring range: 0-10%

8.2.Repeatability: <± 1% Zero drift: ≤2% / week Span drift: ≤2% / week

8.3.linearity deviation: <± 1%

8.4.Response Time: T90≤2 seconds

9.the data acquisition system to collect records oxygen concentration, carbon monoxide concentration test data, temperature, heat release rate, mass loss rate, it can save

10. analyzers are not include.
