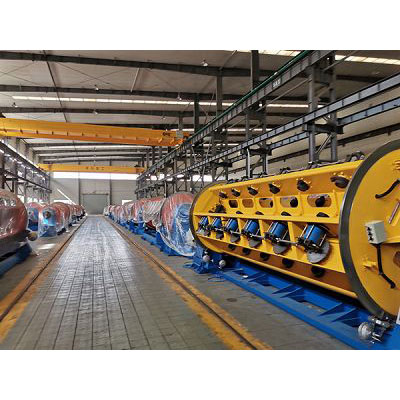

500/630mm Rigid stranding machine

SKU: HH-RS 500/630 Category:

Product usage:



It is mainly used for the stranding of bare aluminum wire, bare copper wire, steel core aluminum strand, drawing and pressing of fan-shaped core and circular core.



Components:



Center pay-off stand, 6, 12, 18, 24, 30 disk main engine, and line die base, compression device, capstan device, take-up and pay-off device, transmission system and electrical system.



Technical parameter:



Model 500 630
Single wire dia copper 1.5-5.0
aluminum 1.8-5.0
Rotational speed of main machine(r/min) 50-164 46-134
Stranding pitch(mm) 45-1105 56-1259
Outing speed(m/min) 7.32-55.29 7.62-57.93
Take-up reel PN2500
