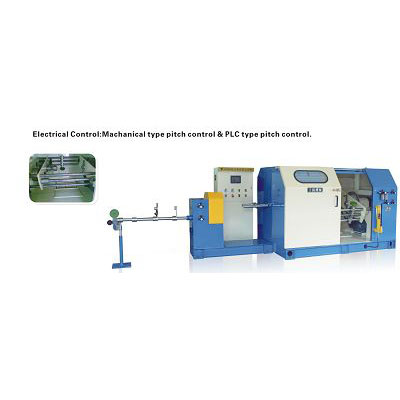

Φ630-Φ800 PLC Single Twisting Machine

Application

Suitable for all kinds of power cable,communication cable,other special cores

become cable,and simultaneously completes the central wrapping and side wrapping.


Specifications

Machine model	ZY-ST-630	ZY-ST-800
Pay-off bobbin size(mm)	400-500
Take-up bobbin(mm)	Standard ramming iron plate: Φ630(OD)×390(outside width)×360(inside width)×Φ80(inside hole)	Standard ramming iron plate: Φ800(OD)×600(outside width)×500(inside width)×Φ80(inside hole)
Bobbin size(mm)	0.6-3.0	1.0-4.0
Finished diameter(mm)	10	15
Twist pitch	20-200mm stepless speed regulation	30-300mm stepless speed regulation
Rotation speed(rpm)	700	500
Loading type	Hydraulic pressure increase or decrease
Traverse	Screw round-trip pay-off line
Take-up tension	Air-lifting
Twisting direction	Exchange wrapping direction “S” or “Z”
Wrapping type	Central or flank circle
Wrapping device	Apply cotton,ALPET and aluminum foil
Weight	Approx 2300kg	Approx 3200kg
