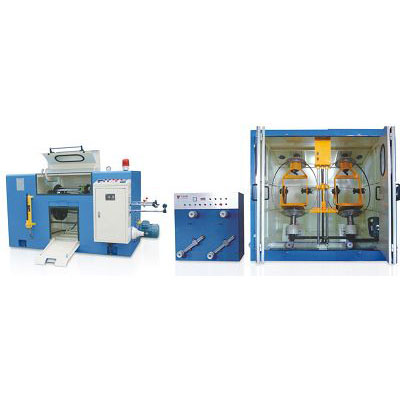

Φ500 Vertical Double Bobbin Back & Φ500 Twist Machine

Application

The machinery for the production,of more than five and over twisted pair cable data words of

the anti-torsion-line of accessory equipment


Specifications

Machine model	Vertical box type
Max rotation speed	Max 10000rpm
Back twist ratio	Max 90% stepless adjustable
Main motor	3.7kw spin motor,1 set inverter control,initiative wire pay-off motor 0.75kw,2 set inverter
Bobbin size(mm)	Max Φ500(OD)×Max Φ320(outer width) or made per customer request
Bobbin weight requirement	<250kg,wire pay-off tension 3-10N
Pay-off tray(mm)	Φ500(OD) × Φ56(ID) × Φ300(outer width)
Pay-off main motor	5HP,4P AC motor
Tensions range	200g,stable and adjustable
Back-twist tension stand	Vertical double head,tension wheel 120mm,3+4ditch,precision potentiometer
Pay-off device	Reserve line tension sensor stand,linkage with pay-off motor,ensure constant wire pay-off
Machine dimension(mm)	L×W×H(2100×1300×2000)
Total weight(kgs)	2200
