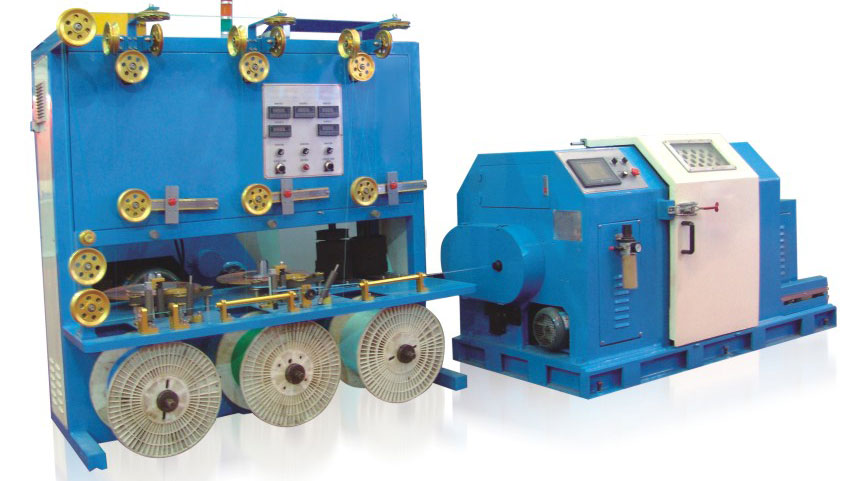

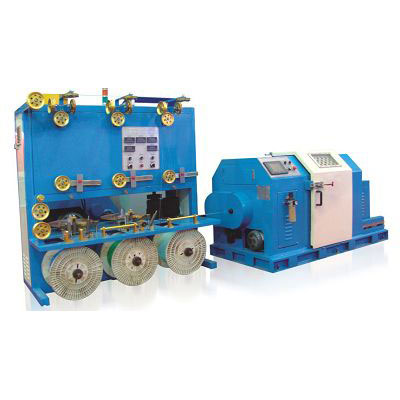

Φ500 Horizontal Cantilever Single Twisting Machine

Application

HDMI,DP,USB,CAT-7and so on high frequency cable,data cable,electrical core wire and

many kinds of pair twisting.


Specifications

Machine model	500 Horizontal Cantilever Single Twisting Machine
Core specification	AWG32-AWG20
Twisting out dia.	Φ4.0mm
Lay scope	15-60mm
Max rpm	Max 1000rpm
Power	Main engine:5HP/pay-off :1/2HP
Core tension	Liner slide rail + slide weight hammer type/mechanical lever + slide moving,with the tension test
Taping tension	Constant tension electromagnetism brake wheel/Automatic tension trace instrument,tapping tension keep constant from shaft to end.
Take-up tension	Electrical tension,by itself,take-up tension keep constant from start to end
Traversing style	Shaft arange take-up,no damge in product process,the size could be established by yourself
Brake of machine	The main shaft of cantilever:dish type brake/take-up volume:electromagnetism brake
Pay-off type	Three power pay-off,adjust the speed by motor drivers,controled with main machine back linkage,and establishment the protection of line break
Shaft of take-up	300-500general shaft
Shaft of pay-off	400-500general shaft
Size of overall(mm)	Length4250×width1200×highly1500
