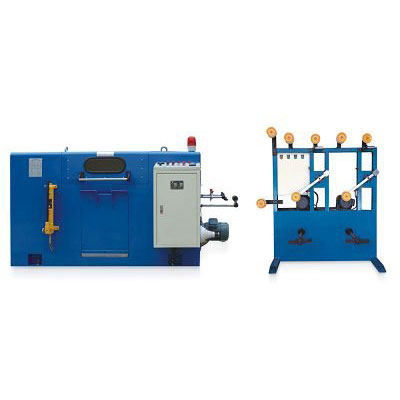

Φ500 & Φ630 Pair Twisting Machine + Activity Pay-off
Application
Apply to stranding of telephone cable,LAN cable,cored wire.
Specifications
| Application | Two wires |
| Rotate speed | Max 18000rpm(3600t/min) |
| Wire feeling diameter | Φ0.6mm-Φ1.5mm core |
| Twisting diameter | <4mm |
| Pitch | 11.00mm-123.00mm |
| Direction | To left or right |
| Take-up shaft | External diameter Φ500×outer wide Φ300× inside wide Φ260×inside hole Φ56mm |
| Tension | Inner tension adopt machanical friction type/initiative motor wire take-up and clutch wire take-up |
| Flat track | Bearing flat cable,row breadth,row distance to be allowed to adjust. |
| Driver motor | 5HP motor+controlled inverter |
| Brake automatically | Electromagnetic brake |
| Dimension | L2690×W1480×H1460 |
| Weight | Approx 2200kg |
