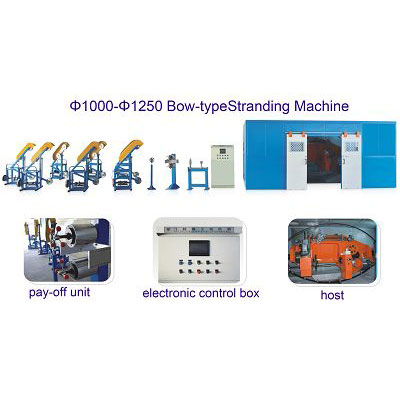

Φ1000-Φ1250 Bow-type Stranding Machine

Application

Apply to the hard and soft copper or aluminum stranded,KVV,RW or cabled telphone wire of more

than 4 pairs core wire.


Specifications

Machine model	ZY-Φ1000	ZY-Φ1250
Finish stranded wire max. diameter (mm)	Φ8.0	Φ15.0
Stranding sec.area (mm2)	1.2-38.0	3.5-50.0
Insulation wire individual(mm)	1.0-2.5	1.0-3.5
Max.RPM	800rpm(1600tpm/min)	600rpm(1200tpm/min)
Main motor	40HP DC motor	50HP DC motor
Electronic control system	Parameter controlled by touch an LCD
Bobbin model	Motor-driven,fixed position
Weight(kgs)	9500	11000

electronic control cabinet.jpg

Main Electric cabinet

Host

pay-off unit.jpg

Pay-off unit
