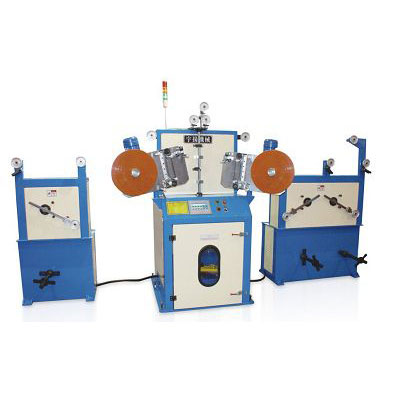

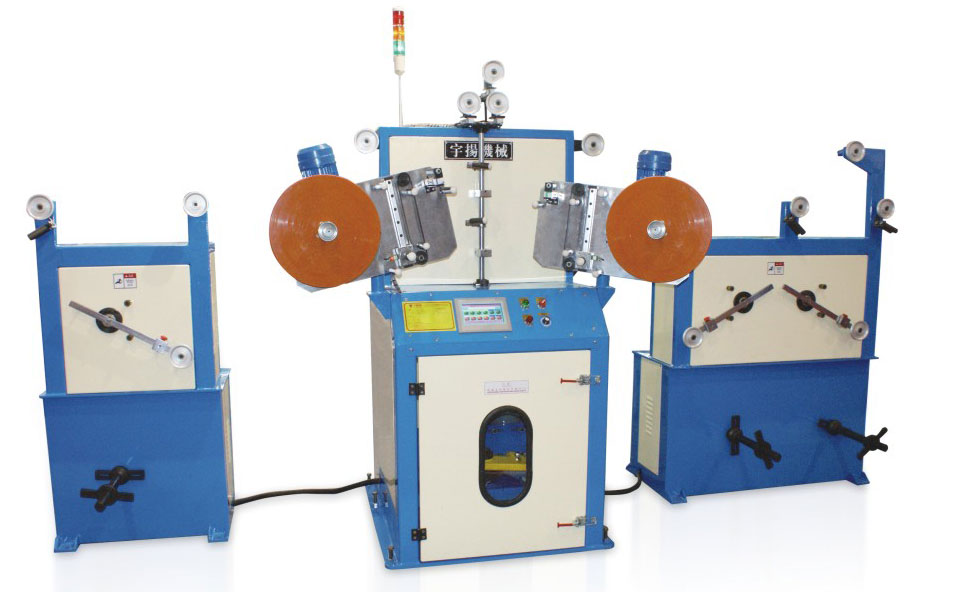

Φ400 Vertical Single Twisting Machine

Application

HDMI foam skin-core line to be double aluminum foil with a complete package,or lines,

release of tension,automatic tracking,with package like a constant tension(set free).


Specifications

Machine model	Φ400 Vertical Single Twisting Machine
Take-up wire plate(mm)	Standard ABS plate:Φ400(OD) ×300(outer wide) × 265(inside wide) × Φ56(hole diameter)
Twisting pitch(mm)	15-60
Speed of rotation	800rpm/min
Motor power	Three-phase voltage 380V 1.5kw controlled inverter
Counter	Photoelectric control counter
Take-up tension track	2.5kg automatic magnetic tension control
Package paper	Single layer or double layer
Pay-off type	Three power pay-off,ad the speed by motor drivers,controlled with main machine by linkage,and establishment the protection of line brake
